Key control values are all displayed and compared with tolerance limits.
Values such as:
• Edge angle
• Taper width
• Taper height
Trend graphs of key values, including width, thickness and edge angles, are plotted on the display. All measured data is archived for quality assurance purposes and post production analysis.
The easy way to see gypsum board size

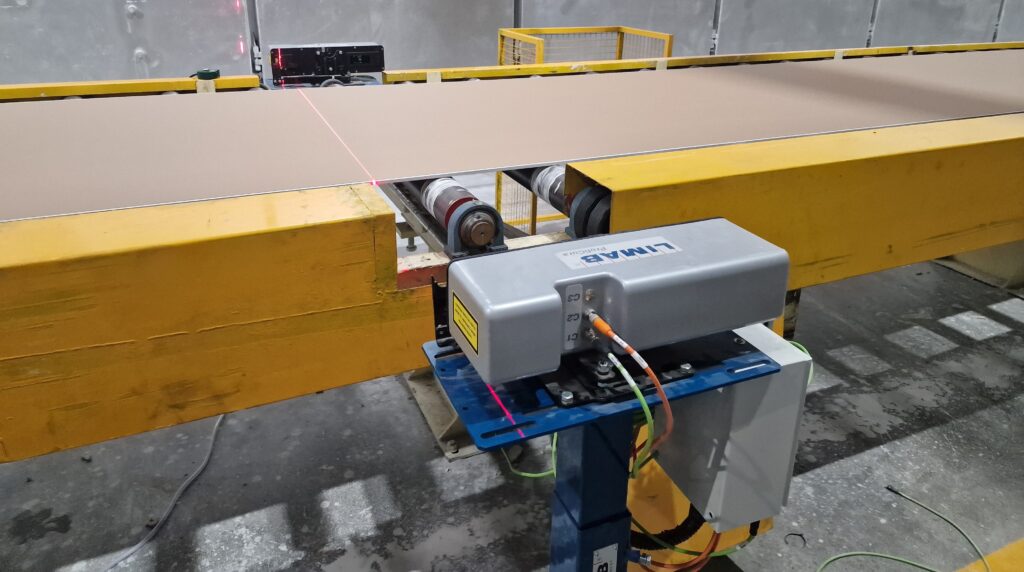

The drywall/ gypsum board dimensions are easily measured using our modular non-contact measuring system. The PreciCura optical laser sensors are installed at the transfer table/inverter and can measure the full thickness of the plasterboard. Laser width sensors are placed before the knife for a constant full edge profile and width. Real time graphs are provided to the operators instantly together with warnings and other indications.
An additional width measurement system can be used right after the mixer for a quick indication of correct width dimensions. The length / shrinkage system, integrated in the GMS1100, measures the wet and dry length of the boards to reduce safety margin at the cutting and consequently the amount of scrap.
We do also have a surface defect detection system, see more information here.
Location in the gypsum board line
