PanelProfiler, In-line thickness measurement system

PanelProfiler is a non-contact, laser-based system for continuous thickness measurement of panel products. Using high-precision PreciCura laser sensors, it provides accurate measurement at high production speeds without marking or damaging the material.The system is suitable for MDF, OSB, chipboard, hardboard, plywood, rigid foam, HPL and fiber cement, and can be installed at different stages of the production line for continuous process and quality control.

Multiple measurement points with one system

PanelProfiler can be installed at multiple points in the production process, including before and after the press, before, between and after the sanders, and at the finishing line. Multiple PanelProfiler frames can be connected to a single computer and operator screen for centralized monitoring.

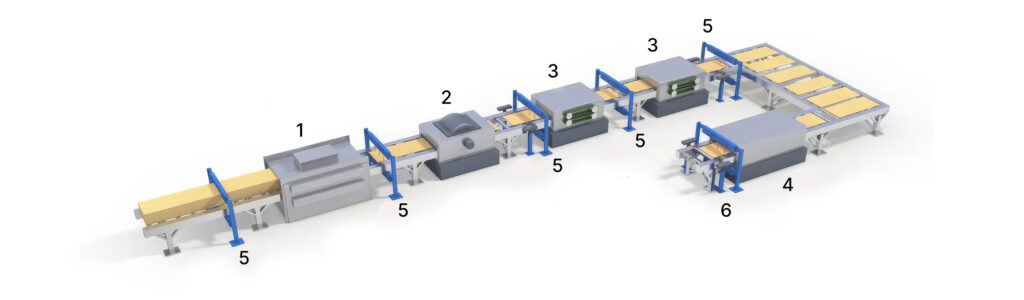

PanelProfiler locations in the production line

1. Press
2. Saw line
3. Sanders
4. Finishing line
5. Thickness measurement
6. Thickness, width and length measurement, including flatness
